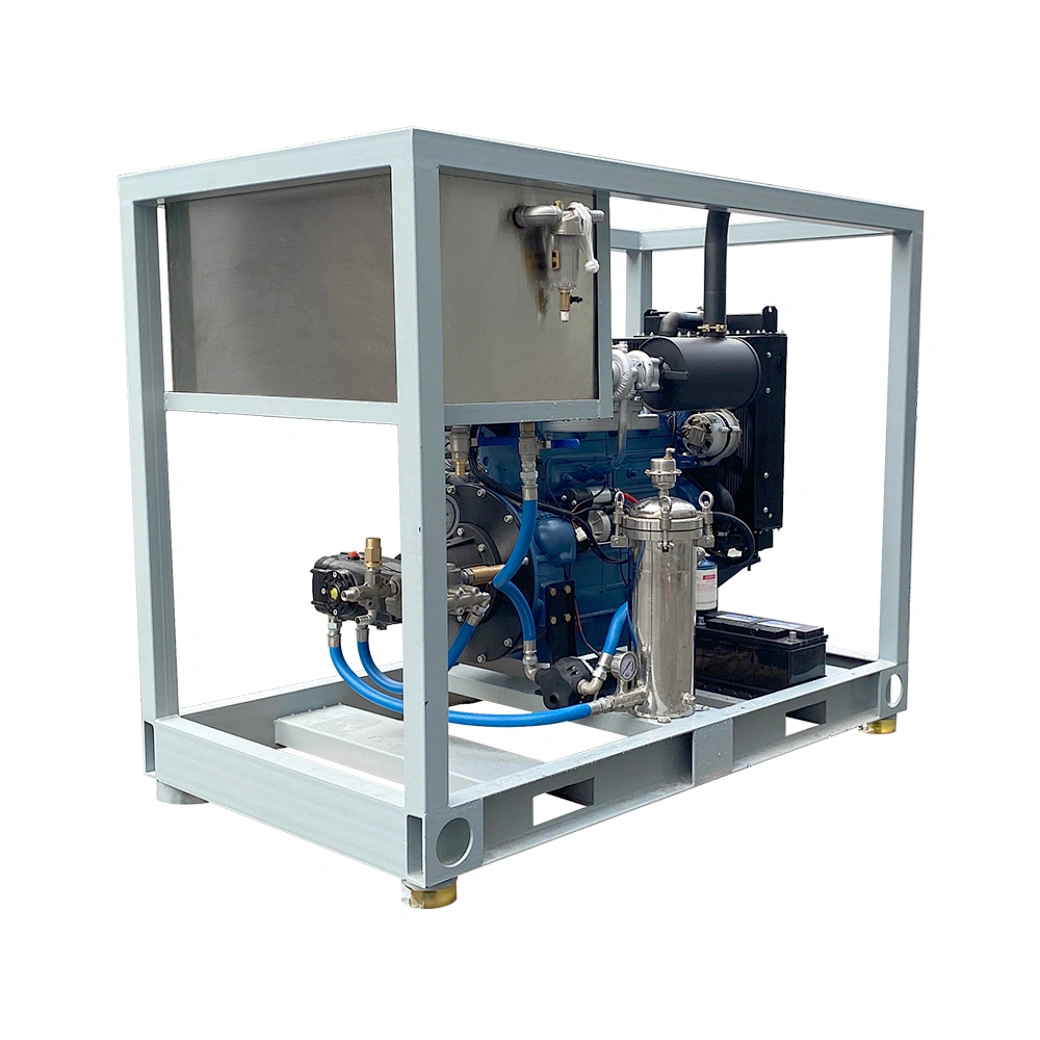

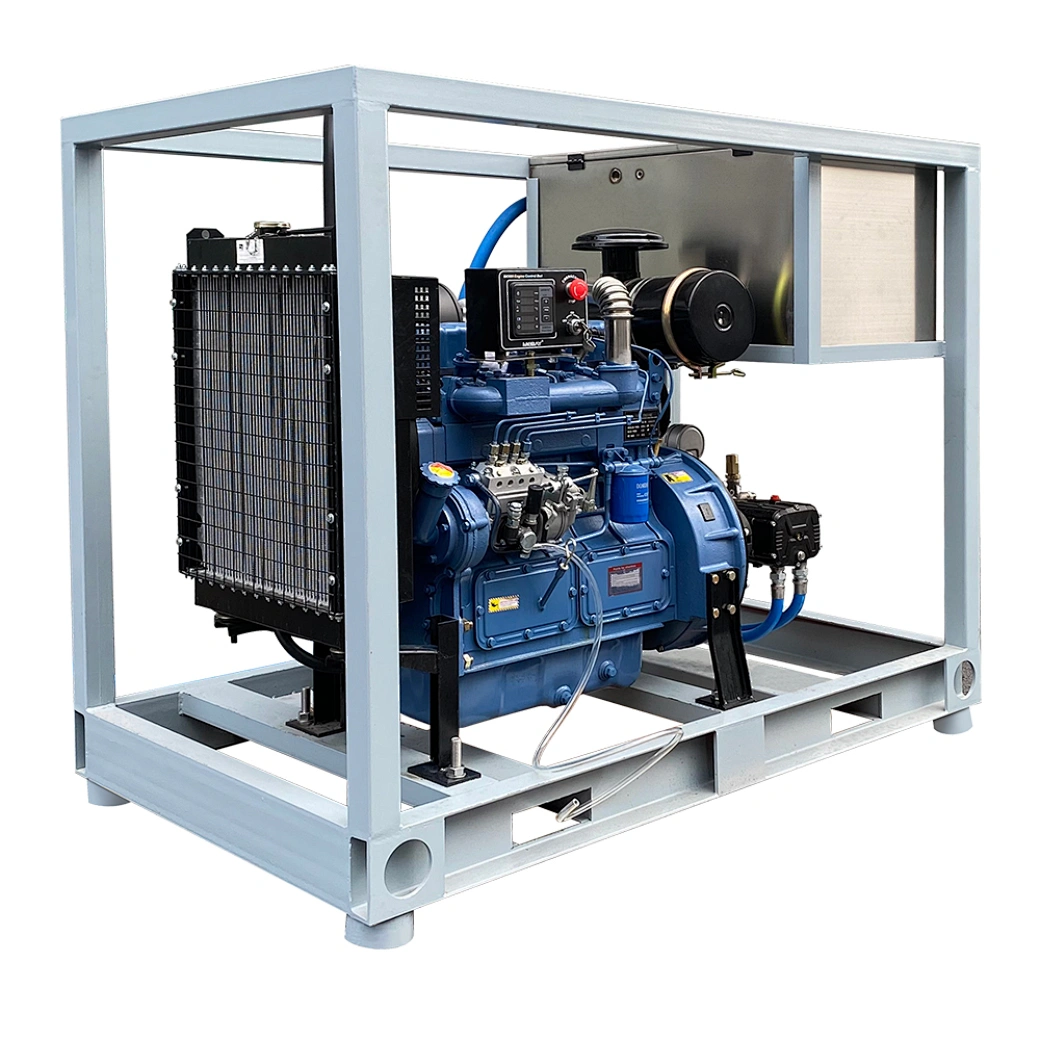

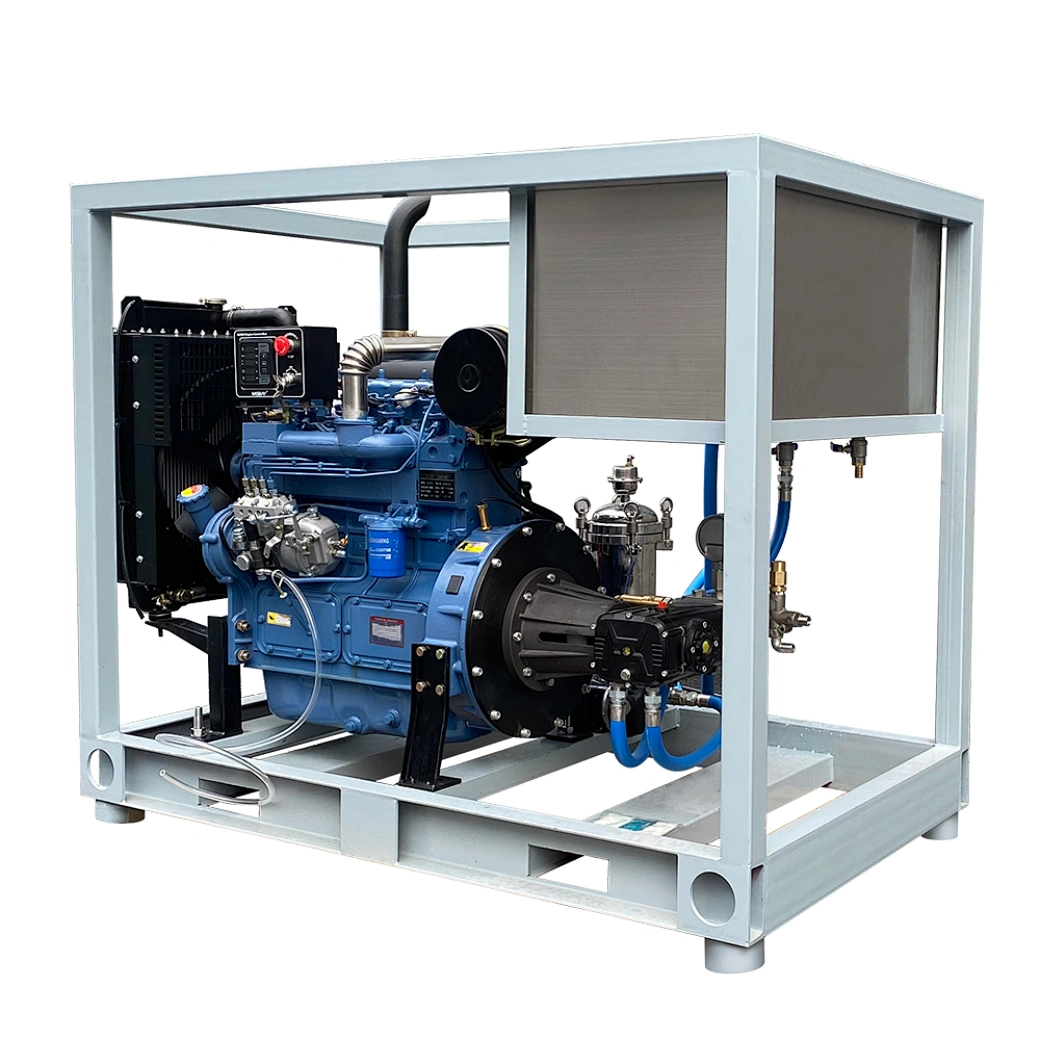

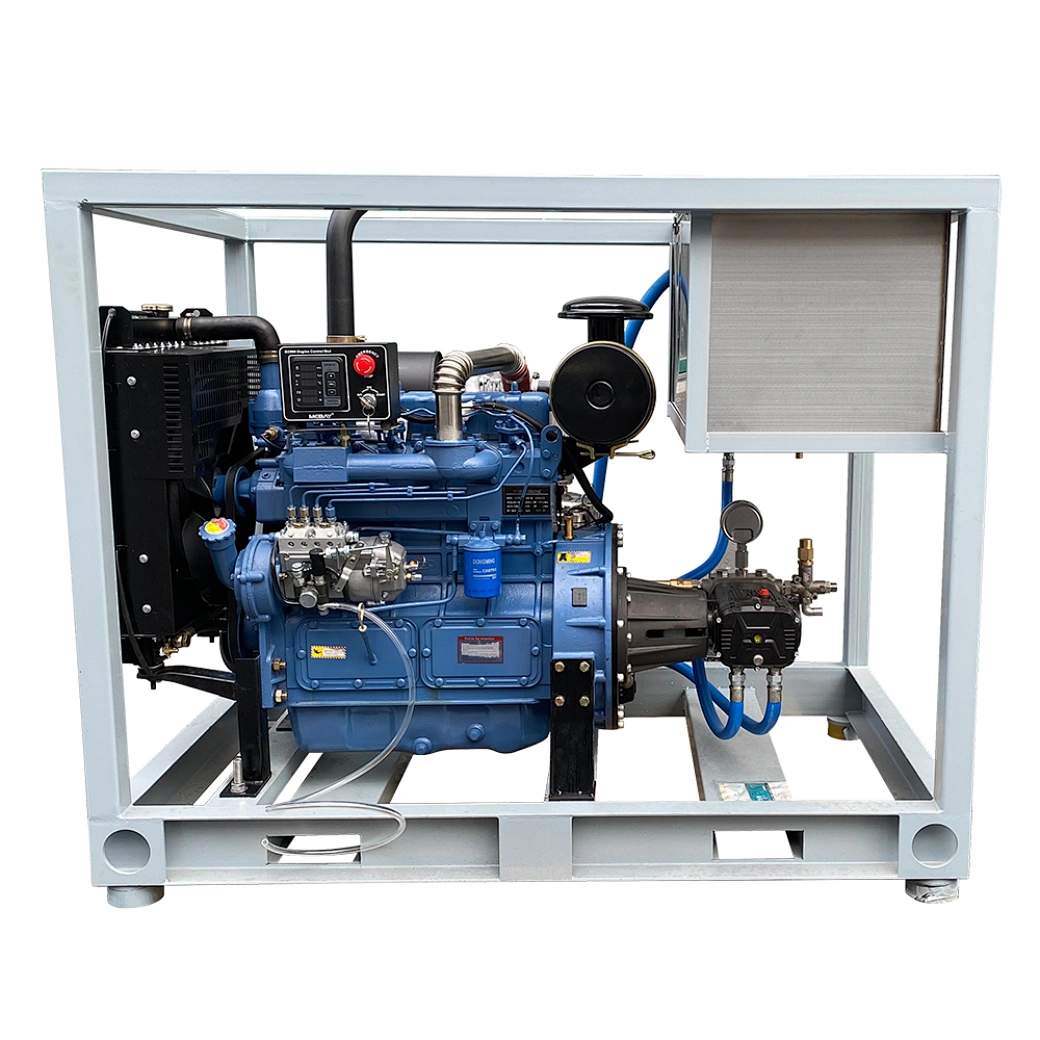

1000bar water blasiting equipment diesel engine drive

1000bar water blasiting equipment diesel engine drive
1000bar water blasiting equipment diesel engine drive - Image 2
1000bar water blasiting equipment diesel engine drive - Image 3
1000bar water blasiting equipment diesel engine drive - Image 4

1000bar water blasiting equipment diesel engine drive

Diesel has a high ignition point, so diesel power is considered to be explosion-proof.
The maximum pressure of this machine can reach 100bar/14500psi,
and the engine is conveniently equipped with CAT’s 4-cylinder/water-cooled/60KW.
The triplex plunger pump adopts the PINFL brand from Germany.
with compact in size and the pump head is made of stainless steel 316L, and the back cover is also equipped with a water cooling device.
So meet the shipyard and marine harsh scene
Category:
Spread the love
The UHP Water Jetting Equipment
Also Called industrial surface cleaner,Water Jetting machineIs A Cold Water water jet unit with A Water Jet Pump Unit and max 14500psi pressure .  it Is Best For uhp water blasting.Flow: 22 Lpm/ 5.8 Gpm
max Pressure: 100Bar/14500psiOur Plunger Pumps Have A 1-2 Year Warranty.  we Provide 24/7 Online Technical Support To Provide You With Considerate Service.

BFQ2280 SERIES


Model Number BFQ221000
Maximum Flow 22L/MIN
Maximum Pressure 800Bar/11600Psi
Pump Model TH14
Pump Head Material SS316L
Regulator jp1500
Autoswitch None
Motor Power K4100ZD/Inline four-cylinder/Four-stroke
Water cooling /Diesel powered 60HP
Motor Speed 1450rpm
Hose & Lenth 20M
Pipe diameter 6mm
Gun&lance Long Gun 1500
Nozzle Tips Rat Nozzle
Net Weight 1500KG
Product Size
Shipping Size
