KT series high pressure plunger pump

KT series high pressure plunger pump

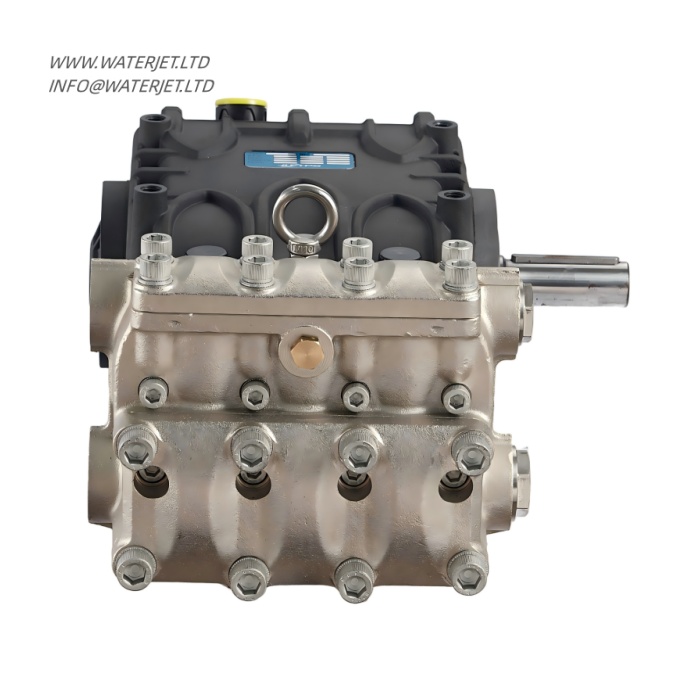

KT series high pressure plunger pump - Image 2

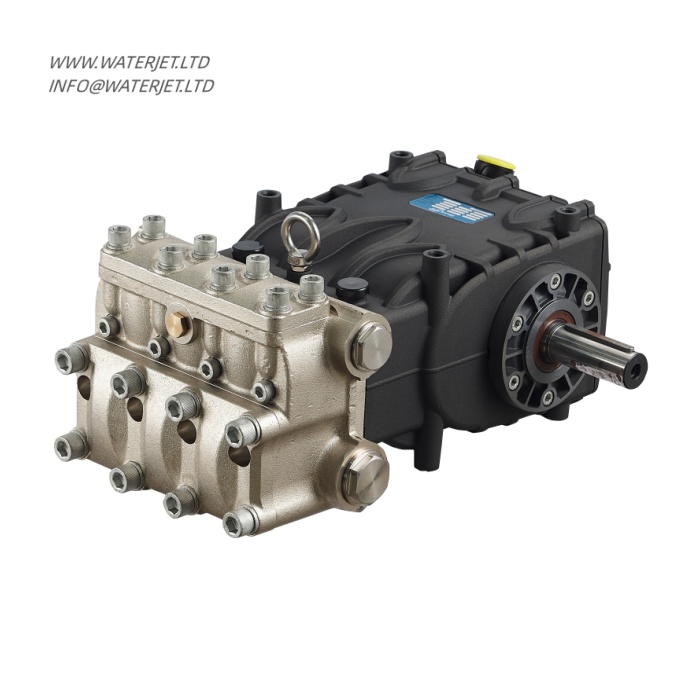

KT series high pressure plunger pump - Image 3
,

KT series high pressure plunger pump

Categories: ,
Spread the love

Standard
Model Volume  Pressure r.p.m  Power Weight
L/min US Gpm bar MPa p.s.i r.p.m hp kW kg
KT 28 70 18.4 200 20 2900 1450 37 27 44
84 22.2 175 17.5 2540 1750 38 28 44
KT 30 80 21.1 175 17.5 2540 1450 38 28 44
96 25.5 140 14 2030 1750 37 27 44
KT 32 91 24 150 15 2175 1450 37 27 44
KT 36 115 30.4 120 12 1740 1450 38 28 44
139 36.7 100 10 1450 1750 38 28 44
KT 40 142 37.5 100 10 1450 1450 38 28 44
KT 45 124 32.8 100 10 1450 1000 33 24 44
112 29.6 100 10 1450 900 30 22 44
99 26.2 100 10 1450 800 27 20 44
